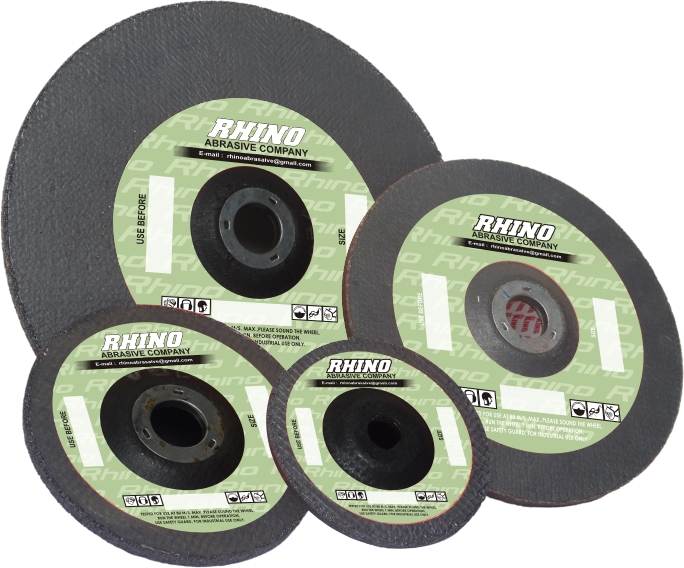

These are used for fabrication work. Heavy material removing operation, back chipping operation
| DIAMETER(mm) | THICKNESS(mm) | BORE(mm) |
|---|---|---|
| 100/115/125/180 & 230 mm | 2 mm TO 7 mm | IN ALL STANDARD SIZE |

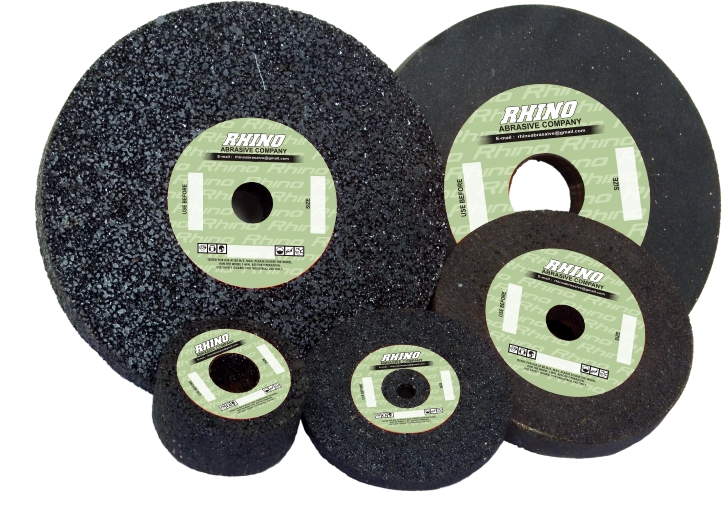

In order to fulfill the ever growing needs of our esteemed clients, we bring forth an unparalleled array of grinding wheels as per the defined standards. These are available in different diameter and thickness in accordance with the need of our valuable clients.
| DIAMETER(mm) | THICKNESS(mm) | BORE(mm) |
|---|---|---|
| 25 TO 300 mm | 6 mm TO 75 mm | IN ALL STANDARD AND NON STANDARD SIZES |

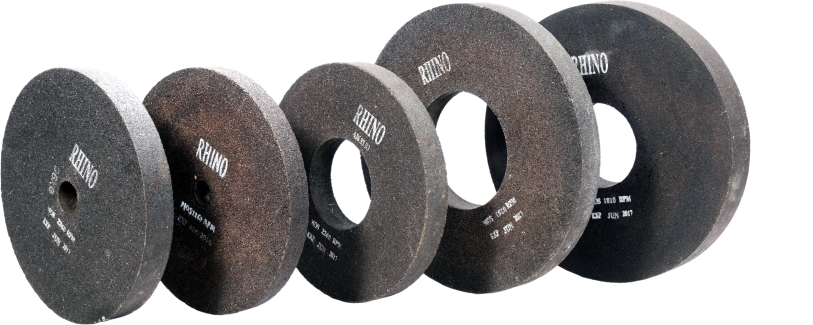

These wheels are largely used in foundries, forging shops for removal of stock gates and risers. They are also used for surface correction of billets in the steel industry. Depending on the job to be ground they are either mounted on a pedestal or a swing frame grinder. These wheels depending on their thickness are reinforced with a steel ring
| DIAMETER(mm) | THICKNESS(mm) | BORE(mm) |
|---|---|---|
| 300 TO 600 mm | 25 mm TO 75 mm | IN ALL STANDARD AND NON STANDARD SIZES |

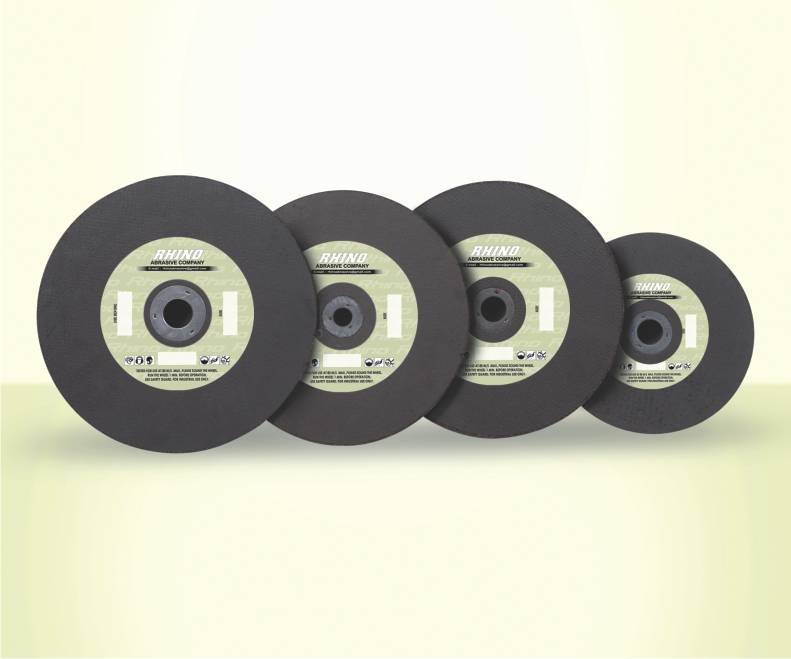

Reinforced cut-off wheels are use for both metallic & non-metallic cutting application, such as bar, street metals cutting, tubing, structural steel cutting & parting off. These wheels are designed to run at 80 m/s to 100 m/s. RHINO manufactured reinforced products as below:
| DIAMETER(mm) | THICKNESS(mm) | BORE(mm) |
|---|---|---|
| 25 TO 600 mm | 1.5 mm TO 6 mm | IN ALL STANDARD AND NON STANDARD SIZES |

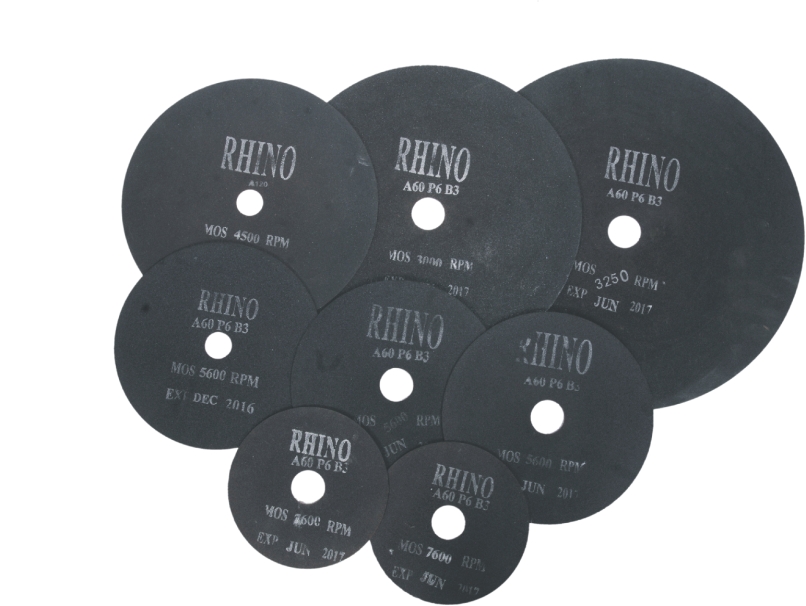

Plan cut off wheels are cutting wheels without reinforcement. These wheels can be used for most tool room application at speeds which do not exceed 60 m/s. They are suitable for use on fixed machines
| DIAMETER(mm) | THICKNESS(mm) | BORE(mm) |
|---|---|---|
| 50 TO 600 mm | 0.3 mm TO 6 mm | IN ALL STANDARD AND NON STANDARD SIZES |

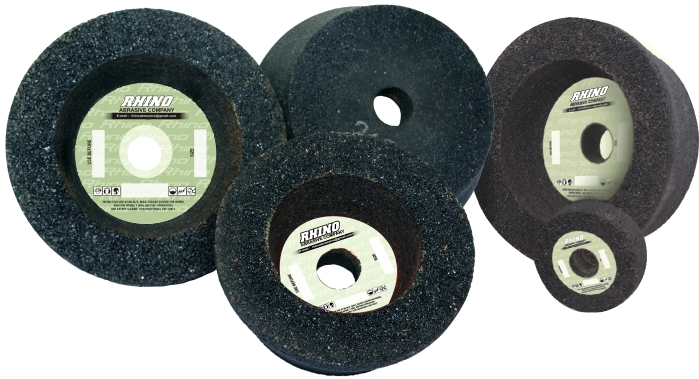

Cup wheels are of various shapes and sizes. They are generally used on portable or reciprocating table surface grinding Machine Cup wheel are used for large stock removal. Available in all standard sizes of straight /Taper cup wheels and nut insert type wheels
Standard diameter from 2’’ to 8’’ (Inch) with standard bore. We also manufacture in different shapes & sizes as per customer's requirement.

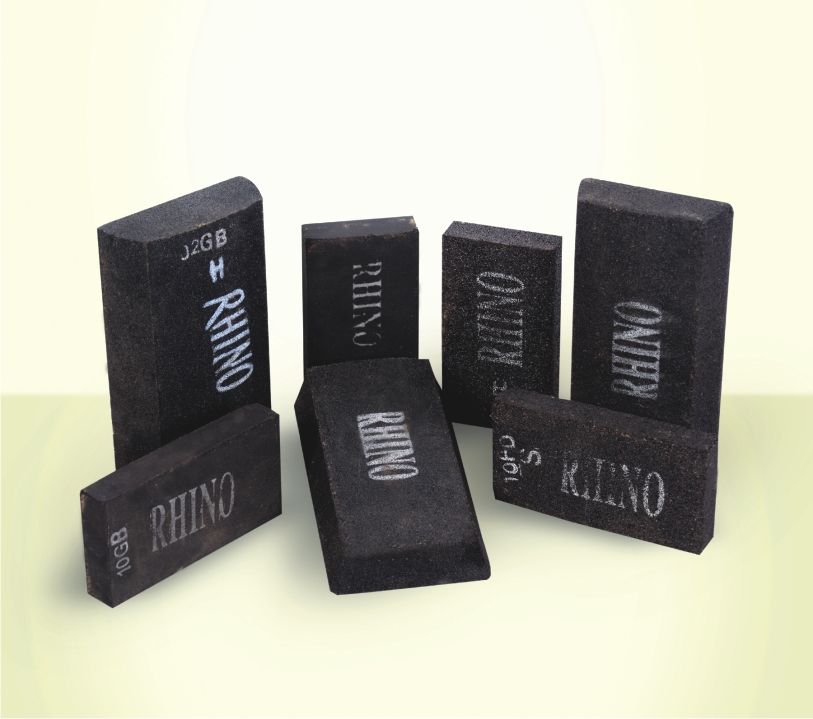

Segments are generally used on rotary table surface grinding machines. Sterling provides a wide range of all purpose shapes, sizes and specifications of segments which are composed with selected abrasives in grits,grades, structures and best bonding system to match any material removal or surface finish requirement from precision tool room grinding to uneven surface production jobs
These are manufactured in different shapes and as per the machine Available with the customer
